Best SiriusXM Truck Mount Options: Long-Reach Windshield, Seat Rail, Dash and Mirror Antenna Setups for Commercial Rigs

Long-haul drivers spend more continuous hours behind the wheel than almost anyone on the highway, making a dependable SiriusXM truck mount setup one of the smartest cabin upgrades for a commercial tractor or heavy-duty work rig. Installing a SiriusXM dock-and-play receiver inside a Class 7 or Class 8 semi cab is mechanically completely different from setting one up in a passenger sedan. Semi tractors have nearly vertical windshields, deep dashboards that sit 15 to 20 inches away from the driver’s reach, constant low-frequency diesel engine vibration, air-ride seats that move vertically on rough pavement, and fiberglass or composite high-rise sleepers that block overhead satellite signals. This guide covers the complete commercial cab setup: the right PowerConnect dock kit, three proven heavy-duty Arkon truck radio mounts, and the two best interior and west-coast mirror antenna mounts for uninterrupted coast-to-coast reception.

If you are outfitting a standard passenger car, crossover, or light-duty pickup with a shallow dash, compare cup holder and vent options in our complete SiriusXM car mount guide. For commercial semi cabs, dump trucks, box trucks, and tow rigs, the six components in the table below work together to form a vibration-proof satellite radio installation.

Best SiriusXM Truck Mount and Antenna Hardware Compared

Start With the Right Powered Dock Kit (SiriusXM SXDV3)

Before selecting a heavy-duty mounting arm, you need the powered vehicle dock that holds the satellite radio head unit and delivers 5-volt power, antenna signal, and audio output. The SiriusXM SXDV3 Vehicle Dock and Charging Kit is the standard commercial foundation. It uses SiriusXM’s color-coded PowerConnect interface and works with almost every dock-and-play receiver released over the past decade, including the Onyx Plus, Onyx EZR, Onyx EZ, Onyx, Edge, Stratus 7, Stratus 6, Stratus 5, Sportster 5, and Starmate 8, 5, 4, and 3.

Inside the SXDV3 box, you get the PowerConnect vehicle cradle, two interchangeable plastic guide inserts (one sized for Sirius-format receivers and one for XM-format receivers), a 12-volt cigarette-lighter power adapter, a 3.5mm auxiliary audio cable, a magnetic roof antenna, and light-duty passenger-car vent and suction clips. In a commercial truck installation, you will use the SXDV3 cradle, the 12-volt power adapter, and the Aux cable. You should leave the short plastic passenger-car mounts in the box, as they are too short to clear a semi dashboard and will flex under diesel vibration.

Look closely at the back of the SXDV3 cradle and you will see two mounting interfaces molded into the housing: a central Single-T slot and four recessed brass-threaded screw holes arranged in a rectangle measuring 30mm by 38mm (1.181 inches by 1.496 inches). That 4-hole rectangle is the industry-standard AMPS pattern used across commercial fleet electronics. Because the SXDV3 dock uses this universal hole spacing, it bolts directly onto all three heavy-duty Arkon truck mounts reviewed below. For a deeper look at how those four holes let you swap cradles without replacing your base, read our guide to the AMPS mounting pattern.

One compatibility check worth running before ordering: while the SXDV3 fits nearly all classic push-button dock-and-play units, it does not fit the newer touchscreen SiriusXM Tour (which requires the SXWB1V1 USB-C dock) or the screenless Roady BT controller. If you are also reviewing your monthly satellite plan for multiple trucks or personal vehicles, check our breakdown on how to lower your SiriusXM subscription price before activating a second receiver.

View on Amazon →

Choosing Your SiriusXM Truck Mount by Cab Layout

Commercial truck interiors vary widely between a flat-dash Freightliner Cascadia, a wrap-around Kenworth T680 or Peterbilt 579 cockpit, and a medium-duty Ford F-650 or Isuzu box truck. The three Arkon mounts below solve the three main mounting positions in a rig: long-reach windshield suction, floor/seat-rail pedestal, and close-reach dashboard suction. Every one of them includes both a Single-T head and a 4-hole AMPS adapter plate in the package.

1. Arkon SR2CM117 Extendable Windshield Mount: Best for Most Semi Trucks

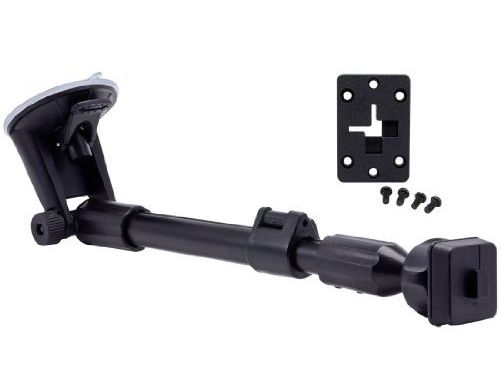

The Arkon SR2CM117 Extending Windshield Suction Mount (pictured at the top of this guide) is purpose-built for deep commercial dashboards. On a standard highway tractor, the base of the windshield sits 16 to 22 inches forward of the steering wheel rim. A normal 4-inch car suction mount leaves the satellite radio stranded out against the glass where you cannot read channel titles or press preset buttons without unbuckling and leaning over the dash. The SR2CM117 solves that geometry problem with a rigid telescoping aluminum shaft that extends from 14.5 inches to 18.5 inches.

This is the one in the photo that accompanies the article.

Two structural details make the SR2CM117 hold up in a heavy truck where cheap telescoping arms fail. First, the base uses a commercial-grade 80mm (3.15-inch) vacuum suction cup driven by a high-tension mechanical locking lever that stays planted on vertical tractor windshields. Second, the underside of the telescoping arm includes a cushioned dashboard support foot. When you angle the shaft down from the lower windshield so that rubber foot rests lightly against the top of the dashboard, you create a two-point triangulated bridge. Instead of bouncing like a diving board over expansion joints, the arm transfers road shock straight into the dash panel.

At the device end, the mount terminates in a 17mm swivel ball with a threaded locking collar and ships with both a Single-T tab and a 4-hole AMPS adapter plate. You can slide your SXDV3 dock onto the Single-T tab for quick removal at truck stops, or screw the 4-hole AMPS plate directly into the back of the cradle for a permanent connection. If you ever switch tractors and notice the suction pad losing grip after months of diesel soot or winter defroster heat, follow the cleaning steps in our failing suction cup mount troubleshooting guide to restore full vacuum seal.

View on Amazon →

2. Arkon 22″ Gooseneck Seat Rail Mount (GN088-SBH-AMPS-L22): Best Low-Profile Floor Mount

Many fleet safety directors and state DOT inspectors enforce strict windshield obstruction rules, and many drivers simply prefer a completely open view over the hood. If you want your SiriusXM receiver positioned down near your right hand beside the range selector or center console, the Arkon GN088-SBH-AMPS-L22 Seat Rail or Floor Mount is the toughest no-windshield solution available that fits the back of the cradle perfectly.

This pedestal uses a thick, bendable 22-inch solid aluminum gooseneck pipe paired with heavy-duty steel floor and seat-rail brackets. At the top of the 22-inch neck sits a 360-degree swivel ball head topped with a 4-hole AMPS plate that bolts directly to the back of the SiriusXM SXDV3 cradle. Once you bend the aluminum pipe into an S-curve that brings the radio up beside the dash, you only need to loosen the upper collar ring to fine-tune screen tilt and glare.

Before installing a seat rail mount in a heavy truck, keep three mechanical details in mind:

• Watch Out for Air-Ride Seat Bases: On a pickup truck or cargo van with fixed seat tracks, you simply loosen the front passenger seat bolt and slip the slotted bracket underneath. In a Class 8 semi with air-suspension seats, never bolt the gooseneck to the moving upper seat frame above the air bellows, or the radio will bounce vertically with the seat. Instead, bolt the bracket to the stationary floor stud beneath the air-ride base, or anchor it to a fixed passenger seat or cabinet flange.
• Use the Included Console Stabilizer Clip: A 22-inch gooseneck gives you tremendous reach in a tall cab, but any long vertical pipe can shimmy at idle if left freestanding. Arkon includes a small metal conduit clamp in the GN088-SBH-AMPS-L22 package so you can brace the midpoint of the gooseneck against the side of the center console or dash trim (note that console self-tapping screws are not included in the box).
• Torque the Base With a Socket Wrench: Never leave a floor or seat-rail bolt hand-tight. Use a ratchet and socket to torque the base bracket firmly against the steel flange. For more floor-anchored installation tips, see our car and truck seat bolt mounts guide.

View on Amazon →

3. Arkon Sticky Suction Dash Mount (SR279): Best for Wrap-Around Truck Dashboards

Modern aerodynamic highway tractors like the Kenworth T680, Peterbilt 579, Volvo VNL, and Mack Anthem often feature a contoured wrap-around center instrument bezel with a flat accessory tray or switch panel sitting right within arm’s reach of the driver. When the mounting surface is already close to your seat, you do not need an 18-inch extension pole—you need a compact base that grips textured plastic or vinyl without drilling screw holes into a leased or company-owned dash. That is exactly where the Arkon SR279 Sticky Suction Windshield or Dash Mount excels.

The SR279 combines an 80mm reversible polyurethane gel pad with a vacuum locking lever on a compact 3-inch vertical articulating arm. Unlike dry rubber suction cups that immediately pop off grained dashboard plastic, the soft polyurethane gel fills microscopic surface textures to form an airtight seal on smooth or lightly textured truck dashes. For deeply grained vinyl or curved surfaces, Arkon also includes an optional 80mm 3M adhesive dash mounting disk in the box.

Out of the box, the 3-inch arm has a Single-T head and includes Arkon’s AP012 2-Way Single-T to 4-Hole AMPS adapter plate, so it attaches to any Sirius, XM, or SiriusXM cradle in seconds. Even better, if you unscrew the swivel head collar, the underlying post is a standard 17mm ball, meaning the exact same base can also hold a 17mm Garmin truck GPS bracket. When dust builds up on the sticky gel pad over time, rinse the base under warm tap water with a drop of mild dish soap, let it air dry completely, and the factory tackiness comes right back.

View on Amazon →

The Antenna Setup: Solving Commercial Cab Signal Dropouts

Antenna placement is where semi-truck installs diverge most sharply from passenger vehicles. In a sedan, you stick the little magnetic puck antenna on the steel roof and tuck the thin coax wire into the rubber windshield molding. You cannot do that on most commercial tractors: high-rise sleepers are molded from fiberglass or composite materials that magnets will not stick to, and a dry-van, reefer, or flatbed cargo load sitting right behind the cab blocks a huge portion of the sky.

Below are the two proven truck antenna setups: a five-minute interior windshield mount for slip-seat company drivers, and an external stainless steel mirror-bracket antenna for long-haul drivers who demand zero audio dropouts.

Option 1: Interior Windshield Suction Antenna Mount (Best for Slip-Seat & Fleet Drivers)

If you drive a company tractor where exterior modifications are prohibited, or if you move your radio between different fleet trucks every week, you do not have to route an antenna outside the cab. SiriusXM satellite signals operate in the 2.3 GHz S-band and pass cleanly through standard non-metallic windshield glass as long as the antenna puck faces upward toward the sky.

The Windshield Suction Cup Antenna Mount provides a flat horizontal acrylic platform held against the inside of your windshield by twin suction cups. You secure the magnetic mouse-tail antenna that came in your SXDV3 kit onto the horizontal shelf using the included adhesive strips, stick the suction cups high on the passenger side of the windshield below the tint band, and drop the cable straight down to your dock. Setup takes under five minutes with zero door-seal routing. For step-by-step placement tips that prevent roof overhang blocking, check our dedicated guide to installing a SiriusXM antenna inside your windshield.

View on Amazon →

Option 2: Browning BR-Trucker Mirror Mount Antenna (Best Reception for Long-Haul Rigs)

While an interior windshield antenna works well on open flatland interstates, a steep truck windshield only sees the sky in front of the tractor. When you head north or drive down steep mountain grades with a 13-foot-6-inch trailer behind you and a fiberglass roof visor above you, an inside antenna can lose line-of-sight to the southern geostationary satellites. If you want bulletproof reception through rocky canyons, heavy timber, and northern corridors, the Browning BR-Trucker Satellite Radio Mirror Mount Antenna is the gold-standard hardware upgrade.

Unlike consumer magnetic pucks, the Browning BR-Trucker is purpose-built for commercial trucking. It features a 10-inch vertical mast mounted on a heavy 3-inch built-in metal ground plane plate, paired with a 3-way stainless steel clamp and bolts that lock directly onto a standard tubular mirror arm or exterior grab bar. Mounting the antenna high on the mirror bracket places the receiver element completely outside the cab structure with a 360-degree view of the horizon.

Another major advantage for truckers is the cable construction. Factory car antennas use paper-thin coax wire that crushes easily in heavy truck doors. The Browning BR-Trucker ships with 17 feet of thick, commercial-grade RG-58/U coaxial cable terminated with a gold-plated SMB female connector that plugs directly into the SXDV3 dock. Even better, the 17-foot RG-58/U cable is detachable and replaceable at the base of the antenna, so if a cable ever gets damaged years down the road, you can swap the wire without unbolting the mirror bracket. You can compare additional heavy-duty antenna styles in our SiriusXM antenna replacement guide for cars, trucks, and boats.

View on Amazon →

Frequently Asked Questions About SiriusXM Truck Mounts

Can I use a regular passenger car SiriusXM mount in a semi truck?

Technically the cradle connector will fit, but a standard passenger car mount performs poorly in a commercial cab. Retail box mounts use short 3-inch to 4-inch plastic arms that leave the radio out of reach on a deep truck dashboard, and their small unbraced suction cups vibrate loose under continuous diesel idle and rough highway pavement. Using a long-reach aluminum mount with a dash stabilizer foot (like the 14.5 to 18.5-inch Arkon SR2CM117) or a 22-inch floor gooseneck keeps the screen readable and stationary.

Do I need to buy a new cradle if I already own a SiriusXM radio?

If you already have a working vehicle cradle from an Onyx, Stratus, or Starmate kit, you do not need to buy a new dock. Look at the back of your existing cradle: as long as it has either the 4-hole AMPS screw pattern or a Single-T slot, it will attach directly to any of the three Arkon mounts in this guide. You only need the SiriusXM SXDV3 kit if you are moving a home receiver into your truck for the first time or replacing a broken power cradle.

Does an inside-cab windshield antenna really work in a big rig?

Yes, for the majority of open interstate driving, an interior windshield suction mount holds the magnetic puck flat toward the sky and receives satellite signals cleanly through the glass. The only exception is if your tractor has an aftermarket metallic solar tint film across the windshield, a huge exterior steel sun visor hanging low over the glass, or if you drive primarily in deep mountain canyons where signals arrive from behind the trailer. In those cases, step up to the exterior Browning BR-Trucker mirror antenna.

What if my truck’s seat rail bolts are covered or attached to an air-ride suspension base?

Never bolt a gooseneck mount to the moving upper frame of an air-ride truck seat. If the stationary floor studs below the air bellows are covered by heavy rubber flooring or plastic trim shrouds, skip the seat rail mount and choose either the Arkon SR2CM117 extendable windshield mount or the Arkon SR279 sticky suction dash mount. Both install in minutes without touching floor hardware.

What screws do I need to attach the SXDV3 dock to a 4-hole AMPS mount plate?

The Arkon mounts include the small machine screws needed to attach their 4-hole AMPS adapter plate to the back of the SiriusXM cradle. What is not included with the Arkon GN088-SBH-AMPS-L22 seat rail mount are floor bolts (since you reuse your vehicle’s existing seat-track bolt) or self-tapping console screws if you choose to screw the optional mid-arm stabilizer clip into a plastic console wall.

Bottom Line: Best SiriusXM Setup for Your Rig

Building a reliable SiriusXM truck mount system comes down to matching your cab’s reach and your company’s installation rules. For most commercial drivers, pairing the SiriusXM SXDV3 Vehicle Dock Kit with the Arkon SR2CM117 Extendable Windshield Mount bridges deep semi dashboards while its dash-resting foot stops screen shake cold. If you want zero hardware on the windshield, bolt the Arkon 22-Inch Gooseneck Seat Rail Pedestal to a fixed floor stud, or lock the compact Arkon SR279 Sticky Suction Mount onto a wrap-around dash shelf. Finish the install with the interior windshield antenna mount for quick slip-seat portability or the Browning BR-Trucker Mirror Antenna for maximum coast-to-coast signal strength.
