Mounts for Uniden BCD436HP HomePatrol Handheld Scanner

Uniden continues to expand their very popular HomePatrol line with the Uniden Handheld BCD436HP scanner.  I remember when a scanner meant having a book of frequencies to key in so that you could find the traffic of interest to you.  Things have changed radically and like the tabletop Uniden HomePatrol-1 and HomePatrol-II Scanner,  just key in your zip code, select the traffic type you wish to hear and the radio finds the stations by itself.  It’s that easy.  Up and running in minutes.

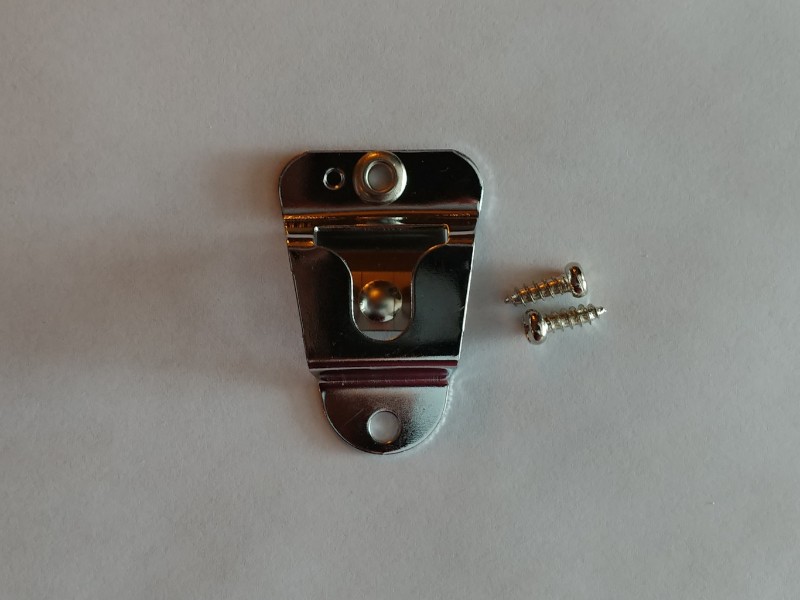

The scanner sports a very reasonable size given the capabilities.  The size is important when selecting a mount.  The unit measures 2.8″ wide x 6.3″ high x 1.5″ deep – this does not include the antenna.  The weight is 12.3 ounces.  There is a rear clip on the back which you will likely remove for mounting so that the flat back can rest flush against the front of the mounting cradle.  In fact, as I think about it, take it off even if you aren’t using a mount.  I’m just not a fan of hanging a radio, GPS or phone from your belt.  It’s not comfortable and a pain to access when you need it.

Let’s discuss mounts.  Decide where you want to mount it.  If it’s a car, take a look around to figure out where a 6.3″ high radio would fit best (and remember to add the antenna to make this about one foot high).  We don’t recommend turning the knobs or pushing the buttons while driving, but you will likely want it in a location where it’s somewhat easy to see the display for the scanner action.  There aren’t any custom mounts for this radio model and not just any mount will fit it.  You might be inclined to use a phone mount but it’s unlikely to fit well because of the 1.25 inch depth and added weight.  A cradle is needed that is at least 1.5 inches deep.  There aren’t many out there this deep.

The RAM Finger-Grip Holder is probably the best solution out there for handheld scanners with this kind of weight and depth.  This is one of RAM’s specialty cradles.  It gets the job done.  There are three sets of fingers with this universal cradle kit.  The BCD436HP will require use of the longest fingers which are 1.6″ deep.  They will handle radios that are from 2.25″ – 3.5″ wide – so the 2.8″ BCD436HP will fit fine.  The top of the Finger Grip Holder can be removed to accommodate the height of the radio.

You can couple the Finger Grip Holder with a RAM 18″ Seat Bolt Mount to attach the radio to your car’s passenger seat.  This is one of my favorite locations for a radio because the height of the mount places the radio right around the same area that your car radio would be.  When the mount isn’t in use, simply bend it out of the way.  Attachment is a 5-minute exercise, assuming the seat bolt is easily accessed.  Just be sure to use a wrench or pliers because the key to making this mount work is to wrench tighten the seat bolt after tucking the mounting claw underneath.

The RAM Finger Grip Suction Cup Mount is a well made accessory but you need to ensure that sufficient clearance exists when you have the radio with antenna within the mount.  The mount has a 3-inch metal arm in the middle with adjustment points at the base and tip.  The suction cup has a vacuum lock to ensure it’s a good attachment but always make sure to clean the windshield thoroughly before attaching the mount.

The last mount that I’ll suggest is the RAM Finger Grip Clamp Mount.  The clamp opens to 1.25″ and there are adjustment points at the clamp and the cradle.  Like the windshield mount, there is a metal 3″ arm in the middle.  These are good for attachment to the lip of a dashboard or, if you are mounting at home, the lip of a table.  This mount, as well as the others mentioned within this article come with a lifetime warranty.

Mounting Components Discussed in this Article:

PhotoManufacturerDescriptionAmazon Link
RAM MountFinger Grip HolderRAM FingerGrip Cradle

RAM MountSeat bolt mount which will attach to a finger grip cradleRAM POD I Universal No-Drill(TM) Vehicle Mount with 18"" Rigid Aluminum Rod & Diamond Adapter Base
RAM RAM-B-166-UN4URAM MountSuction cup mount with finger grip cradleRam Mount Twist Lock Suction Cup Mount with Universal Finger-Grip Phone/Radio Holder - Non-Retail Packaging - Black

RAM MountClamp mount with finger grip cradleRAM Mounts (RAM-B-121-UN4) Yoke Clamp Mount With Universal Finger-Grip Holder
